Diversity Microphone System

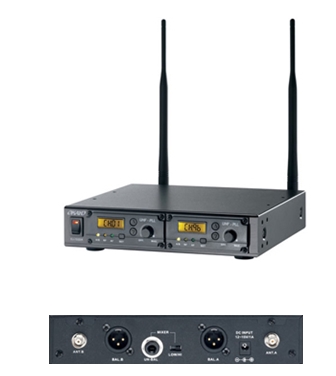

EJ-702DR Dual-channel Diversity Receiver
EJ-700DR series is a UHF band, PLL synthesized diversity wireless microphone system, equipped with 4 receiver modules in maximum. With pre-programmed 96 selectable frequencies make it easy to choose available interference-free channels.
Simplified and understandable operation design makes this unit highly user-friendly.
UHF band 640 – 865 MHz, PLL synthesized with 16 (863 – 865 MHz) or 96 (640 – 664 MHz, 740 – 752 MHz, 794 – 806 MHz) selectable frequencies, for multi-channel / multi-purpose application.
LCD window, LED indicators and backlit for better comprehensive operation.
Simplified design makes it highly user-friendly by UP, DOWN and SET button.
Compact and economy unit, only 1/2 U in size.
Optional L-type bracket available for mounting in a rack.
Balanced XLR connectors and unbalanced 6.3mm jack available for different purposes.
Tone-key squelch available to eliminate external noise.
Effective reception distance
