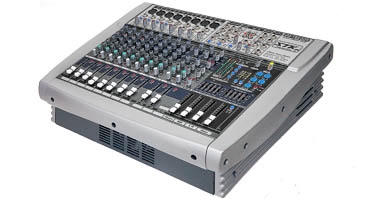

The VM16S-DDR have a same class features of the SM-16SDDR Mixer section.
Lot of Inputs configurations with studio quality Mic preamps and total 900W powerful outputs in a compact size.
• 16 CH 32 input configurations.
• STK studio quality MIC preamps, superbly flat 0.005% THD.
• The faders precision log-taper type, made by PANASONIC.
• The CH Pan Pots are constant loudness control type design.
• Ultra low noise circuit board design ¡°STK STANDARD¡±
• The G.EQs precision frequency controls,low noise,no clipping design
• Ultra-realistic sound with 20kHz response dual variable DDR digital effector
• Lowest in-rush trodial transformers, T-tunnel design heat sink cooling.
• FET control quiet power on/off muting circuits.
• Available rack mounting 8U space.

SPECIFICATIONS

Model VM16S-DDR
Configuration
Power(EIA)
4 ohm load per channel 440W + 440W
8 ohm load per channel 300W + 300W
Rated Power(20-20kHz)
4 ohm load 430W + 430W
8 ohm load 290W + 290W


Distortion
(THD & SMPTE IND; 20Hz to 20kHz)
Mic input to main mixes output 0.01%
Mic input to power amp output 0.05%
Inputs
(all 1/4¡± TRS are Bal./Unbal.except*)
Mono mic/line 8 (XLR and TRS1/4")
Stereo line 2(left/mono) + 2(Right)
CH Insert TRS 1/4"
Tape Stereo RCA
Sub Line(Aux Returns) 2(Sub 1&2 Left) + 2(Sub 1&2 Right)
Amp in 1 TS 1/4" L, 1 TS 1/4" R
Outputs
(all 1/4¡± TRS are Bal./Unbal.except*)
Main L/R Stereo Dual TRS 1/4¡±
Main Mono(Subwoofer) 1 TRS 1/4¡±
Aux Sends Dual TRS 1/4¡±
Tape L/R Stereo Stereo RCA
Phones TRS 1/4¡±
Speaker Outputs TS 1/4" /Speakon
Channel Strips
Aux controls 1 + 1 EFX + 1 Mon
Constant Loudness pan control Yes
Channel solo with metering Yes
LED indicators Peak
Volume controls 60 mm Faders
Master Section
Digi EFX Dual Variable
Reverb Control 1 Time Pot(0.5~10 sec)+1 Level Pot
Delay Control 1 Time Pot (50~1000 msec)+1 Level Pot
Repeat Control 1 Delay Feedback Pot(0-90%)
Program Delay/Echo, Delay Cross F.B, Delay 3 Tap Pan, Delay One Short, Reverb HALL, Reverb Room, Reverb PLATE, Reverb AMBIENT
Digi EFX Control On/Off, LED Level Set
Digi EFX Buss Control 1 Mon + 1 Main
5 Band Graphic Equalizer 1 Left + 1 Right
Power AMP Routing Yes
Foot Pedal EFX Jack Yes
Amp In Level Control Yes
Tape In Level Control Yes
Global AFL/PFL Solo Mode Yes
Aux/Monitor Send Master 60 mm Faders
Main Mix Volume 60 mm Faders
Mono Master 60 mm Faders
Noise
Master Gains@Unity, CH.gains Down 87dB
Master Gains@Unity, CH.gains@Unity 85dB
Signal to Noise Ratio ¡ֳ97dB
Crosstalk
Adjacent inputs or input to output -90 dB
Frequency Response
20Hz to 40kHz(Mic Pre Section) +0, -1dB
20Hz to 30kHz(Power Amp Section) +0, -1dB
Maximum Levels
Mic Preamp Input +14 dBu
Power amp in +22dBu
All Other inputs +20 dBu
Impedances
Mic Preamp Input 4k Bal
All Other input 10k
Line Input 4k
Equalization 3 Band Mid Sweep & 4 band fixed
Low EQ(¡¾15dB) 80Hz¡¾15dB
Mid EQ(¡¾12dB) 100Hz-8kHz¡¾12dB & fixed 800Hz,3KHz
Hi EQ(¡¾15dB) 12kHz¡¾15dB
Low-Cut Filter 18dB/Oct 75Hz
Micriphone Preamp E.I.N.5 -128 dBm
Power Requirements 1200 Watts
Dimension(WxHxD) 515 x 146 x 405
Shipping/CBM 0.0621
Net Weight 19.5 kg
Shipping Weight 20.8 kg
