שם הדגם: CPC1544 \1244
יצרן: SPECTRA
מקט:
CPC1544 \1244
לחץ על התמונה להגדלה

תאור המוצר

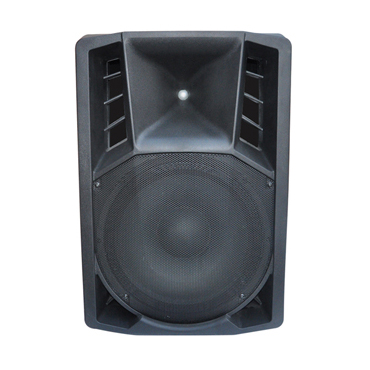

Model name:                                   15" performance plastic speaker cabinet
Model type:                                       passive / active
Power Handling(passive):            400W RMS  /  800W max
                                 (active):            200W RMS  /  400W max
Impedance (passive):                    8 Ω
                          (active):                    4 Ω
Sensitivity:                                         96dB    1m/W
Frequency Response (-3dB):       43~20000Hz
Low Frequency Driver (passive):  transducer 8Ω impedance,  15" (385mm) diameter
                                                            3" high temperature voice coil on glass  fibre former ,
                                                            steel basket,   60 OZ magnet
Low Frequency Driver (active):      transducer 4Ω impedance,   15" (385mm) diameter
                                                            3" high temperature voice coil on glass  fibre former ,
                                                            steel basket,   60 OZ magnet
High Frequency Driver:                   Compression Driver 8Ω impedance
                                                            1" (25mm) exit, 1.75" (44mm) voice coil
                                                            Titanium diaphragm
Crossover:                                        3kHz   12dB/Oct
Horizontal coverage angle:            90°
Vertical coverage angle:                 60°


Cabinet Material:                              Composite PP
Grille:                                                  Steel
Colour:                                               Black
Handles:                                            1 on side
Cabinet Size (HxWxD):                    700x480x390mm
Weight (passive):                             22kg net / 26kg gross
                  (active):                             25kg net / 30kg gross
