שם הדגם: Y-2S01
יצרן: DEMAX
מקט:
Y-2S01

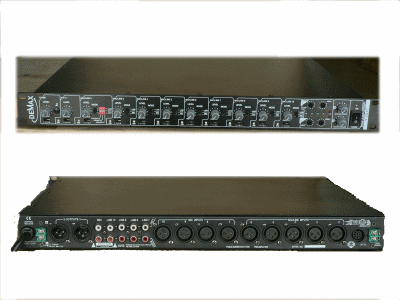

לחץ על התמונה להגדלה

תאור המוצר

Y-2S01 Features
* 2 channel mixer of 10 inputs
* Mic 2-4 with VOX selector over inputs 5-10 and phantom power
* All the 10 inputs with mic, line and high pass filtering selector
* Inputs 6-10 either by XLR mic inputs or by dual RCA line inputs
* Dual channel XLR line outputs
* All inputs include inputs1-10, PTT1 chime could be selected to have channel1, channel 2 and channel 1+2 outputs.
* Built-in 2/4 tone pre-set chime, remote chime trigger and local trigger on front panel
* Volume controls are provided over chime, PTT1, inputs2-10, channel 1 and channel 2 masters. Bass and treble tone control are provided for both channel 1 and channel 2.
* Indicators for input 1-10, power and 2 channel level meters
* AC 120 or 230V and DC 24V operation


Specifications
Model Y-2S01
Input sensitivity/impedance
MIC/ Line -50dBu(2.45mV)/5K¦¸balanced -10cBu(245mV)/5K¦¸balanced
Line RCA in -10dBu(245mV)/5K¦¸unbalanced
Output level/impedance
Master 1, 2 Nor +4dBu/200¦¸balanced
REC Nor 0dBu/10K¦¸unbalanced
Frequency response
Less Than -0.5dB(20Hz¡«20KHz)
Signal to noise ratio
MIC More than 60dB
Line More than 75dB
T.H.D
MIC Less than 0.05%
Line More than 0.03%
Cross-talk
MIC More than 60dB
Line More than 75dB
Power consumprion power 13W
Power supply ¡«110V/60Hz or ¡«230V/50Hz , DC 24V optional
Dimensions ( WxHxD) 484 x 44 x 265mm
Weight 3.9Kg
