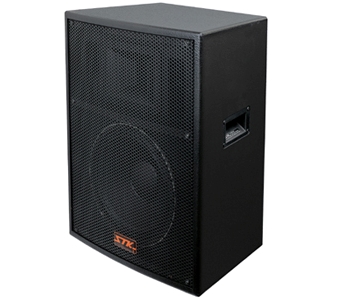

שם הדגם: SP-122
יצרן: STK PRO
מקט:
SP-122
לחץ על התמונה להגדלה

תאור המוצר

The SP122 is full-range two-way with 12¡± SK-12200F transducers vented, an perfect cabinet for a compact portable sound system. The one inch SK30STN high frequency driver produces clear crisp highs-even at high levels, the SP122 will give many years of accurate and reliable reproduction...
• 2-Way passive full-range system.
• The one inch¡± SK30STN high frequency drivers on a SABS3 horn.
• An internal passive crossover network Frequency is 2.5kHz 12dB/ octave.
• The STK ¡°circuit pro¡± protects the high-frequency driver from accidental overload.
• The enclosure construction: By STK ¡°STANDARD¡±
• Ultra tough, the scratch proof warnex texture coated.
• 35mm pole mount receptacle on the bottom.
• STK pole and speaker stand option.


SPECIFICATIONS


Model SP-122
PHYSICAL SPECIFICATION
System configuration 2-Way Full Range
LF system & Loading One SK 12200 12" woofer, Vented
HF system & Loading One 1 "Voice coil compression driver(SK30STN)
Operating Mode Passive
Controls
Enclosure Material Plywood with MDF
Enclosure Finish Black warnex texture coated
Connectors Two neutrick speakon
Grille Powder coated perforated steel
Optional accessories 1 STK Eye Bolt "SEB 08"
Optional accessories 2 STK Pole "SPM35130"
Demensions
( ¡¾0.13 inch / ¡¾3 mm) Height: 632
Front width: 480
Rear width: 375
Depth: 350
Trapezoid angle(degrees) 18
Shipping/CBM 0.1636
Net weight 21.90 kg
Shipping weight 25.48 kg
TECHNICAL SPECIFICATION
Frequency Response
¡¾3 dB 63Hz ~ 18kHz
-10 dB 54Hz ~ 19kHz
Recommended
High-Pass Frequency
Axial Sensitivity(dB SPL, 1 watt @ 1m) Full Range Passive 101
Nominal Input Impedance(ohms) Full Range Passive: 8
LF: 8
HF: 8
Power Handling, Watts
(Continuous/Program/Peak) Full Range Passive: 250/500/1000
(Continuous) LF: 250
(Continuous) HF:35
Max Calculated SPL (Referenced to 1 m)
Full Range Passive Peak 131
Full Range Long Term 128
Norminal disperson(degrees @ -6dB)
Horizontal 85¡ֶ
Vertical 85¡ֶ
